In agriculture, 8mm hollow transparent color is generally used as a covering material. It has good thermal insulation coefficient, light weight and high structural strength. It is favored by multi-span greenhouses in cold areas. But what I am sharing with you today is a case of using milky white sunlight panels in a corrugated greenhouse.


First, the use of PC greenhouses

Greenhouses are used as vegetable storage and sorting centers, cold storages, offices and other functions. However, since it is not suitable to build concrete buildings in the agricultural park, the design of the corrugated Polycarbonate Greenhouse with the top and the surrounding milky white material covering is used.


2. Polycarbonate Greenhouse model

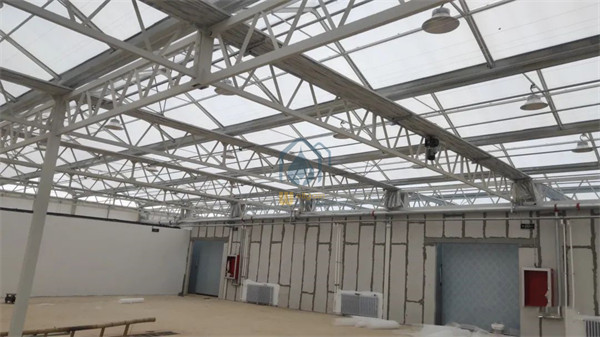

1. The specifications and models of the steel skeleton of the solar panel greenhouse are 150*150*3.75*4500mm for the columns, 50*70*2.5mm for the truss beams, 50*100*2.5mm for the longitudinal truss beams, 375*2.2*4000mm for the water tank, and 375*2.2*4000mm for the greenhouse. The surrounding beam is 50*50*2.0,. The span of the greenhouse is 10.8 meters, and the bay is 8 meters. The greenhouse is 5 spans, 54 meters from east to west, 5 bays and 40 meters from north to south, and the building area of the greenhouse is 2160 square meters.


2. Greenhouse covering materials

The top and all sides of the greenhouse are covered with 10mm milky white sunlight panels, and the light transmittance of the sunlight panels is 10%. This can not only ensure the thermal insulation of the greenhouse and the use of normal greenhouse installation profiles, but also ensure that the interior of the greenhouse will not be too high to affect the temperature in the shed.


3. Advantages of milky white sunlight panel sorting center

1. It meets the functions of the park, builds speed blocks, is convenient for construction, and has low requirements for the bearing capacity of the foundation. Normally, it can be installed in 45-50 days.
2. Hot-dip galvanized light steel structure, the cost is more economical and practical, and the service life is more than fifteen years.

3. Non-large span design, strong wind and snow resistance. At the same time, the interior is bright and meets normal working conditions.
